New Structural Design Greatly Improves Module Flatness
Unique surface flatness adjustment technology optimizes panel stress distribution, improves screen installation flatness by 30%, and creates an integrated borderless visual experience.
INDOOR FINE PITCH LED DISPLAY
TWMS COB Series
Pixel pitch: 0.7mm / 0.9mm / 1.2mm / 1.5mm
Cabinet Size: 600 x 337.5 mm
- The design adopts a golden ratio of 16:9, which is convenient for splicing and can easily splice 1080P, 2K, 4K, 8K high-definition images, achieving point-to-point display.
- Micro LED COB flip chip, with a contrast of 10000:1.
- DCI color gamut NTSC 110% coverage.
- Ultra high brightness, contrast, and wide viewing angle.
- Low power cold screen energy-saving common cathode circuit, low temperature rise, low power consumption.
Micro LED COB Flip Chip Technology
No need for wire bonding, high reliability
Common Cathode Technology
Precise voltage control for more energy saving
Film Laminating Technology
Eliminate bubble residue and improve anti-glare level
Extremely Long Service Life
Up to 100,000 hours
10,000:1 Maximum Contrast
Multi-View
1920-3840Hz Refresh Rate
300-800 Brightness (nits)
3000-10000 Color Temperature (K)
≥97％ luminance Uniformity
IP65 Protection Grade
Die-Casting Aluminum
Ink Color Consistency
First-Class Light Effect
Ink color expression, full-screen black purity consistency, restore true color. The static contrast ratio can reach up to 40.000:1, and the picture has a more layered and delicate feeling.

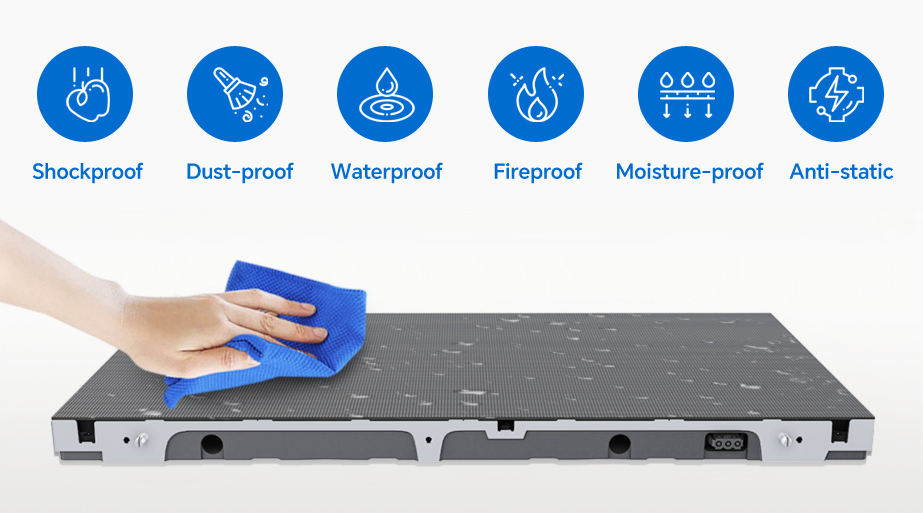

Protection Level IP65
Easy to Clean and Maintain
The front protection level is IP65, anti-collision, shockproof, moisture-proof, waterproof, dustproof, fireproof, anti-static, anti-salt spray, strong environmental adaptability.
Energy-Saving Cold Screen
Super heat dissipation, strong thermal conductivity. The same brightness reduces power consumption, and the panel temperature is stable within 38℃ for 12 hours of continuous work.
Specifications
Product Model
|
TWM6307S
|
TWM6309S
|
TWM6312S
|
TWM6315S
|
|---|---|---|---|---|
Pixel Composition
|
Inverted COB
|
Inverted COB
|
Inverted COB
|
Inverted COB
|
Pixel Spacing (mm)
|
0.78125
|
0.9375
|
1.25
|
1.5625
|
Resolution (W × H)
|
768×432
|
640×360
|
480×270
|
384×216
|
Size (mm)
|
600×337.5×35.9
|
600×337.5×35.9
|
600×337.5×35.9
|
600×337.5×35.9
|
Cabinet Weight (kg/Pcs)
|
4.5±0.1
|
4.5±0.1
|
4.5±0.1
|
4.5±0.1
|
Pixel Density (dots/㎡)
|
1638400
|
1137777
|
640000
|
409600
|
Unit Flatness
|
≤0.15mm
|
≤0.15mm
|
≤0.15mm
|
≤0.15mm
|
Maintenance Method
|
Front maintenance
|
Front maintenance
|
Front maintenance
|
Front maintenance
|
Protection Grade
|
IP65（Front）
|
IP65（Front）
|
IP65（Front）
|
IP65（Front）
|
Material
|
Die-casting aluminum
|
Die-casting aluminum
|
Die-casting aluminum
|
Die-casting aluminum
|
Connection Method
|
Network interface
|
Network interface
|
Network interface
|
Network interface
|
Brightness (nits)
|
300-800
|
300-800
|
300-800
|
300-800
|
Color Temperature (K)
|
3000-10000
|
3000-10000
|
3000-10000
|
3000-10000
|
Horizontal Viewing Angle (°)
|
165
|
165
|
165
|
165
|
Vertical Viewing Angle (°)
|
165
|
165
|
165
|
165
|
Brightness/Chromaticity Correction
|
Support
|
Support
|
Support
|
Support
|
luminance Uniformity
|
≥97％
|
≥97％
|
≥97％
|
≥97％
|
Color Gamut
|
≥110%NTSC
|
≥110%NTSC
|
≥110%NTSC
|
≥110%NTSC
|
Maximum Contrast
|
10,000:1
|
10,000:1
|
10,000:1
|
10,000:1
|
Peak Power Consumption (w/㎡)
|
≤300
|
≤300
|
≤300
|
≤300
|
Average Power Consumption (w/㎡)
|
≤100
|
≤100
|
≤100
|
≤100
|
Frame Switching Frequency (Hz)
|
50/60Hz
|
50/60Hz
|
50/60Hz
|
50/60Hz
|
Refresh Rate (Hz)
|
1920-3840
|
1920-3840
|
1920-3840
|
1920-3840
|
